VCGT Recutting Square Shoulder Cutter Disc Shell Milling Cutter
Product Details:
| Place of Origin: | ChengDu China |
| Brand Name: | LIAN XIANG |
| Certification: | ISO9001:2008 |
| Model Number: | VCGT Square Shoulder Recutting Cutter Disc |
Payment & Shipping Terms:
| Minimum Order Quantity: | It Depends On The Material And Size |
|---|---|
| Packaging Details: | WrapThe Product In Foam And Then Put The Product Into The Carton. |
| Delivery Time: | 4 To 7 Weeks |
| Payment Terms: | L/C, D/A, D/P, T/T |
| Supply Ability: | 10 Tons Per Month |
|
Detail Information |
|||
| The Knife Dish Material: | 42CrMo | Brand Name: | LIAN XIANG |
|---|---|---|---|
| Place Of Origin: | ChengDu China | Certificate: | ISO9001:2008 |
| The Angle: | 90 ° | Model Number: | Customized |
| Machining Diameter: | 50-100MM | Cutter Blade Number: | 3-5 Blades |
| Advantages: | Strong Impact Resistance, Effective Processing Steel Parts, Alloy Parts | Inner Hole Diameter: | 22/27/32MM |
| Apply To The Blade: | VCGT220530F | ||
| Highlight: | Recutting Square Shoulder Cutter,VCGT Square Shoulder Cutter,90deg Shell Milling Cutter |
||
Product Description

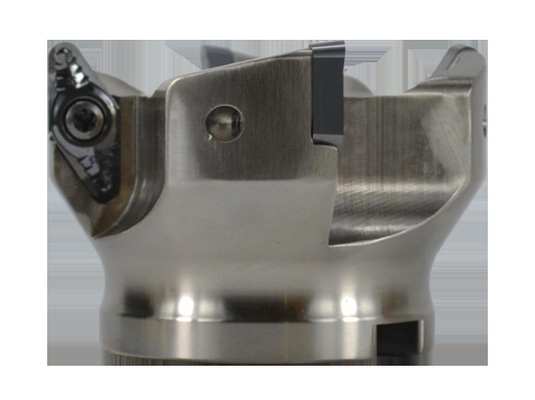

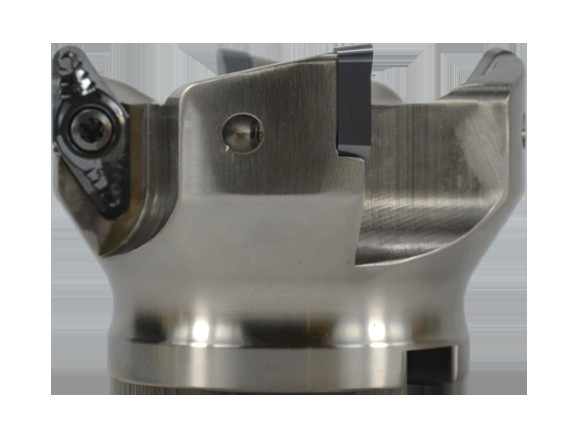

VCGT Square Shoulder Recutting Cutter Disc Shell Milling Cutter
Product details
| Product Name | VCGT Square Shoulder Recutting Cutter Disc |
| The knife dish material | 42CrMo |
| Place Of Origin | ChengDu China |
| Brand Name | LIAN XIANG |
| Custom | Can be customized |
| Angle | 90 ° |
| screw | M5 |
| wrench | T20 |
| Identifier | measure | Type | screw | wrench | |||||
| D | d | H | W | P | |||||
| 50-22-3T | 50 | 22 | 45 | 10.4 | 6.3 | VCGT220530F | M5 | T20 | |
| 50-22-4T | 50 | 22 | 45 | 10.4 | 6.3 | ||||
| 63-22-4T | 63 | 22 | 45 | 10.4 | 6.3 | ||||
| 80-27-4T | 80 | 27 | 55 | 12.4 | 7 | ||||
| 100-32-5T | 100 | 32 | 55 | 14.4 | 8 | ||||
| Identifier | measure | Type | screw | wrench | |||||
| D | N | T | |||||||
| D30-M16-2T | 30 | 16 | 2 | VCGT220530F | M5 | T20 | |||
| D32-M16-2T | 32 | 16 | 2 | ||||||
| D35-M16-2T | 35 | 16 | 2 | ||||||
| D40-M16-3T | 40 | 16 | 3 | ||||||
| Identifier | measure | Type | screw | wrench | |||||
| dc | dm | L1 | L | ||||||
| D32-C25-160-2T | 32 | 25 | 50 | 160 | VCGT220530F | M5 | T20 | ||
| D32-C25-200-2T | 32 | 25 | 50 | 200 | |||||
| D32-C25-250-2T | 32 | 25 | 50 | 250 | |||||
| D32-C32-160-2T | 32 | 32 | 60 | 160 | |||||
| D32-C32-200-2T | 32 | 32 | 60 | 200 | |||||
| D35-C32-160-2T | 35 | 32 | 50 | 160 | |||||
| D35-C32-200-2T | 35 | 32 | 50 | 200 | |||||
| D35-C32-250-2T | 35 | 32 | 50 | 250 | |||||
| D40-C32-160-3T | 40 | 32 | 55 | 160 | |||||
| D40-C32-200-3T | 40 | 32 | 55 | 200 | |||||
| D40-C32-250-3T | 40 | 32 | 55 | 250 | |||||
Features:
1. Made from 100% virgin raw material
2. HIP sintering
3. Stable chemical properties
4. High hardness, good compactness
5. Excellent performance and good wear / corrosion resistance
6. Blanks, high machining accuracy / precision
7. Various grades of tungsten carbide available
8. OEM customized sizes available
9. Factory’s offer
10. Strict products quality inspection
Packaging & Shipping
1.We will choose the right package according to the shape of the product. Usually choose foam plastic, cartons, large cartons, professional plastic packaging boxes and so on.
2.According to your choice or our recommendation of the best transportation plan.
FAQ
Q1. What is your advantage ?
A:We have the best factory to produce for you,could guarantee the price is the most competitive. BEGUN carbide was recognized by market, it widely used for Chinese big project.
Q2. What is your terms of payment?
A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.
Q3. Could you offer OEM and ODM service?
A:That is ok ,we have more than 7years experience in OEM service. professional R&D department is ready to design products to fit your specifications,they can offer the professional advice and CAD drawings(3D) for you!
Q4. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost
Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery. Our production is based on ISO9001,we have more than 10 years experience of QC team and strictly quality control system in our production process.
Q6. What about the package?
A.It can make as the you need and depend on the products shapes. Generally, we can provide iron drum, carton, wooden case, and bag packages.
Q7: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
